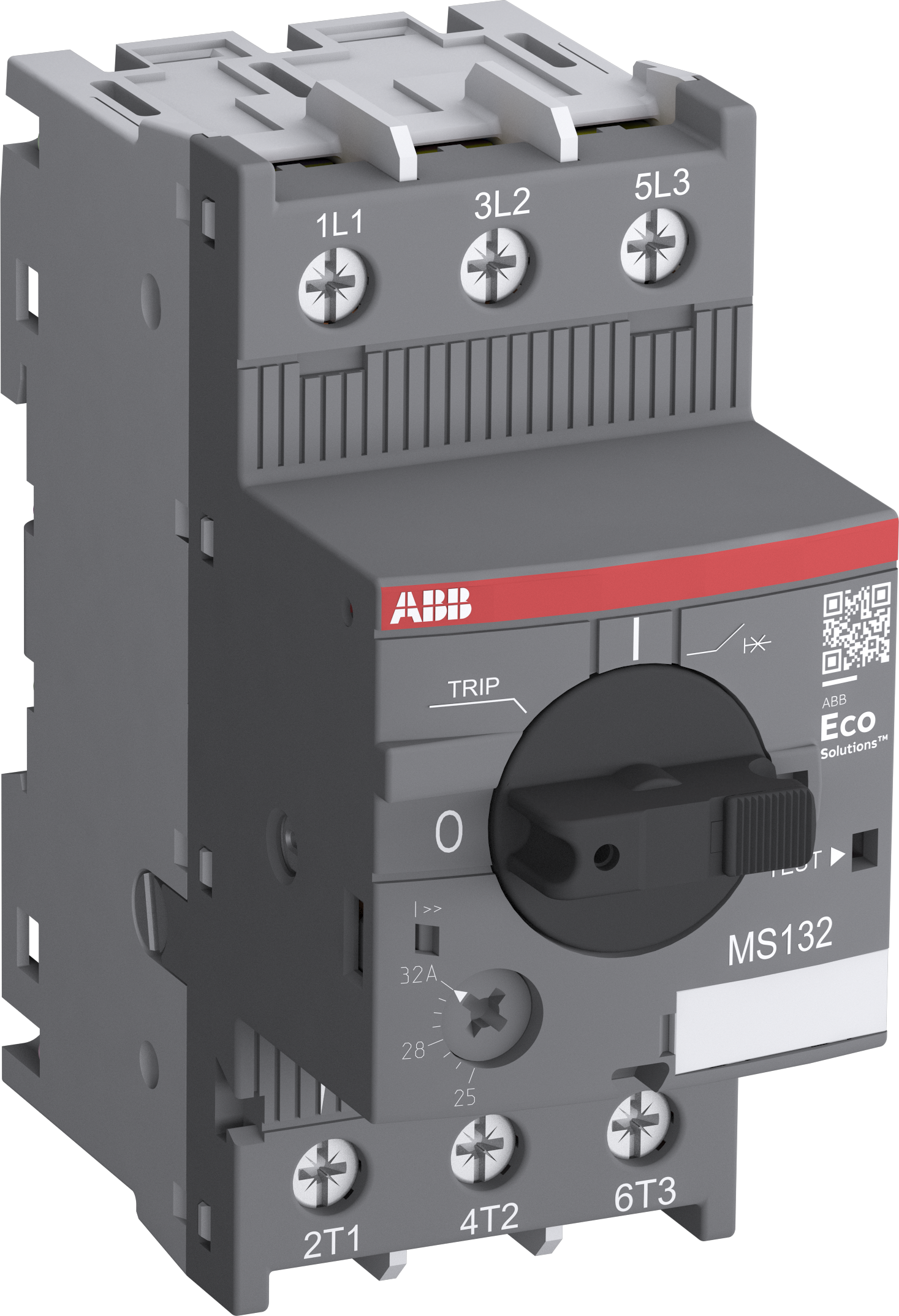

Manual Motor Starters
ABB is a global leader in electrification and automation, supplying contactors, circuit breakers, switches, metering and control products for industrial and building installations. SSC Control is an authorised ABB partner, supplying the full range with genuine products, warranty and technical support across Gujarat and India.

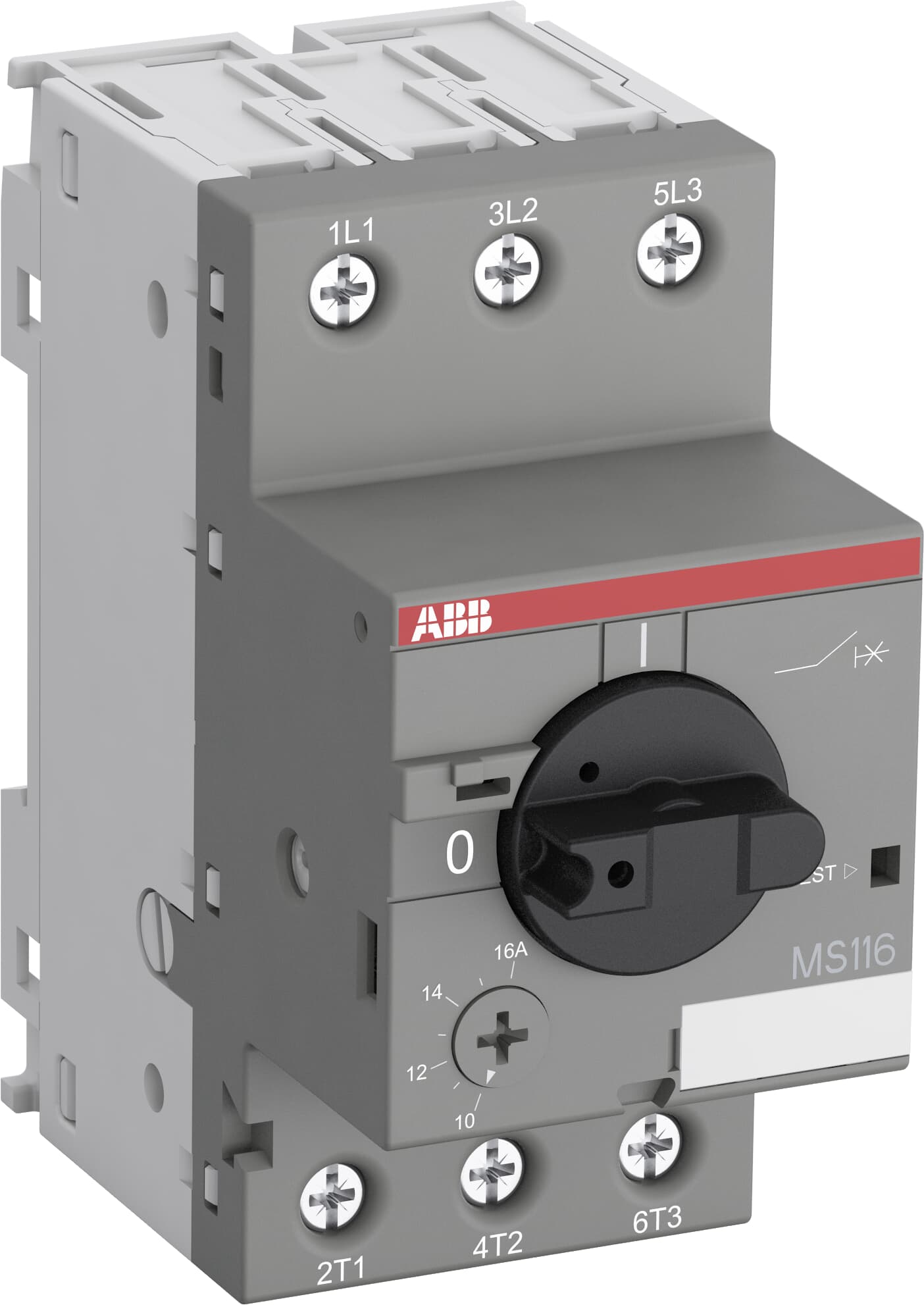

MS116
Compact and economic manual motor starter for motor protection up to 32A.
- Setting: 0.1 to 32 A
- Breaking: 50 kA at 400V
- Poles: 3
- Terminal: screw
- Use: motor protection with built in disconnect
MS132
Powerful manual motor starter offering very high breaking capacity in a 45mm width.
- Setting: 0.1 to 32 A
- Breaking: 100 kA at 400V
- Poles: 3
- Terminal: screw
- Use: motor protection and fuseless short circuit protection
MS165
Compact and powerful manual motor starter for currents up to 80A.
- Setting: 10 to 80 A
- Breaking: 50 kA at 400V
- Poles: 3
- Terminal: screw
- Use: motor protection up to 45 kW with disconnect
MO165
Magnetic only manual motor starter providing short circuit protection and switching.
- Frame: 0.16 to 80 A magnetic
- Breaking: up to 100 kA at 400V
- Poles: 3
- Terminal: screw
- Use: short circuit protection and disconnect for feeders
MS496
High power manual motor starter with trip class 20 for heavy duty motors.
- Setting: 28 to 100 A
- Breaking: 50 kA Ics at 400V
- Poles: 3
- Terminal: screw
- Use: motor protection for large motors up to 45 kW
Need a manual motor starter?
Our team can size the MMS rating and trip class for your motor.
