ABB Energy Meters
ABB is a global leader in electrification and automation, supplying contactors, circuit breakers, switches, metering and control products for industrial and building installations. SSC Control is an authorised ABB partner, supplying the full range with genuine products, warranty and technical support across Gujarat and India.
M4M Network Analyser
Fully connected network analyser for accurate energy monitoring and complete power quality analysis.
- Phase: 3 phase
- Measures: kWh, power, power factor, THD
- Comms: Modbus RS485, Modbus TCP, BACnet
- Mount: DIN rail or panel
- Use: energy efficiency and power quality monitoring
M2M Network Analyser
Panel mounted network analyser with LCD display for bidirectional energy metering and remote monitoring.
- Phase: 1 and 3 phase
- Measures: kWh bidirectional, A, V, frequency, THD
- Comms: Modbus RS485, Ethernet, digital and relay outputs
- Mount: panel 96 x 96 mm
- Use: remote switchboard and generation monitoring

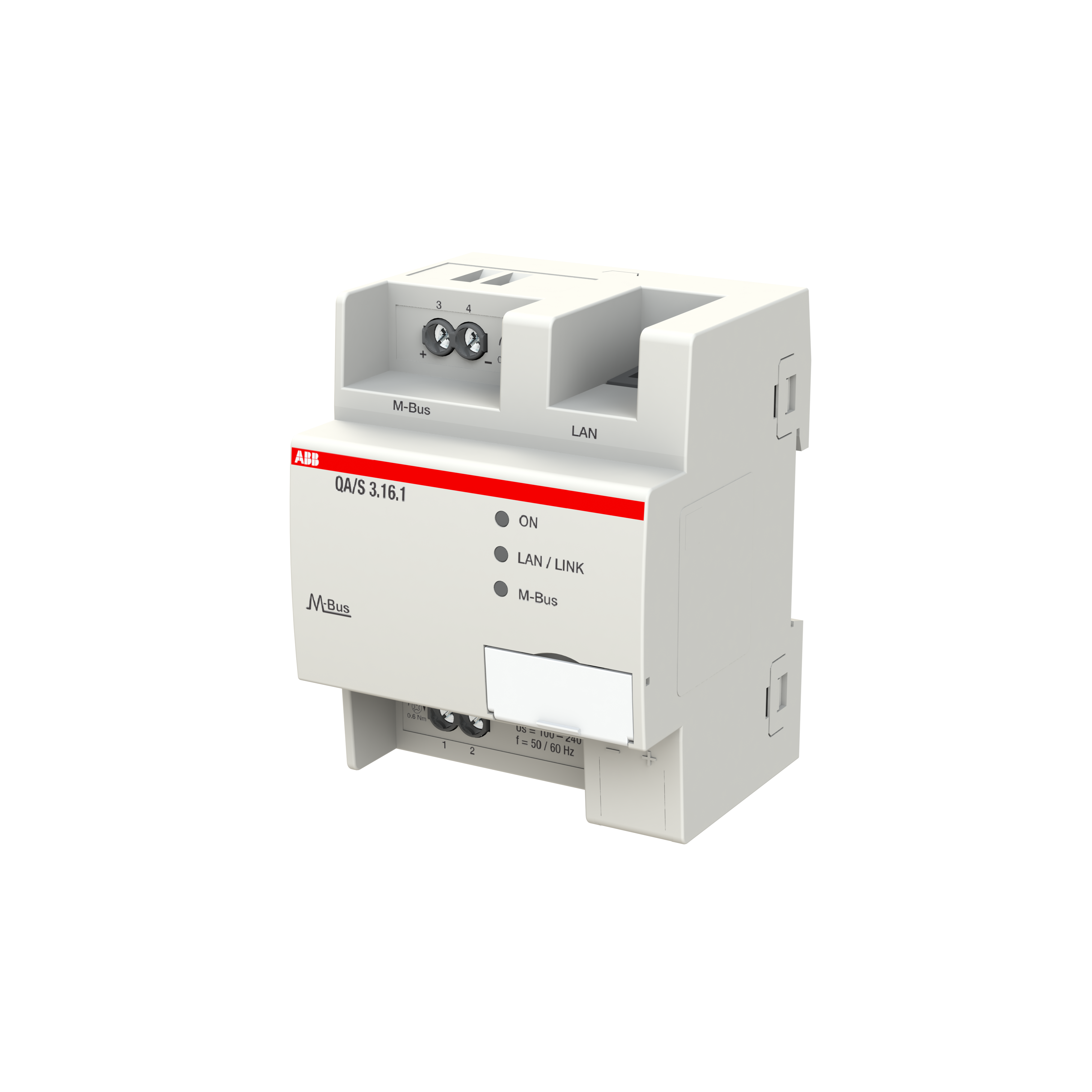

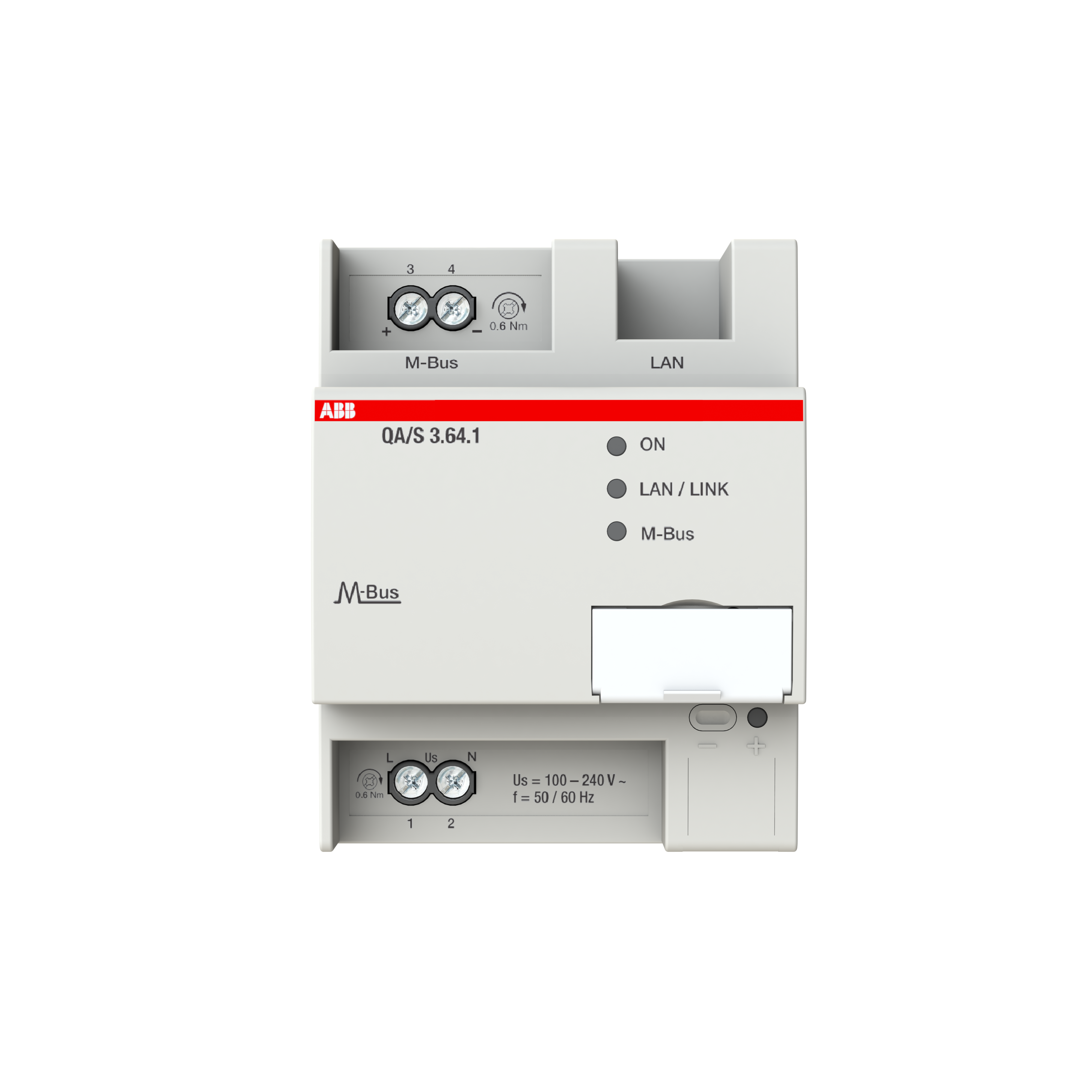

EQmatic Energy Analyzer QA/S
Compact web based energy analyser that logs, stores and visualises consumption data from connected meters.
- Inputs: electricity, gas, water, heat meters
- Storage: up to 3 years of logged data
- Comms: M-Bus master or Modbus RTU plus Ethernet web interface
- Mount: DIN rail
- Use: visualisation and cost analysis of up to 64 meters

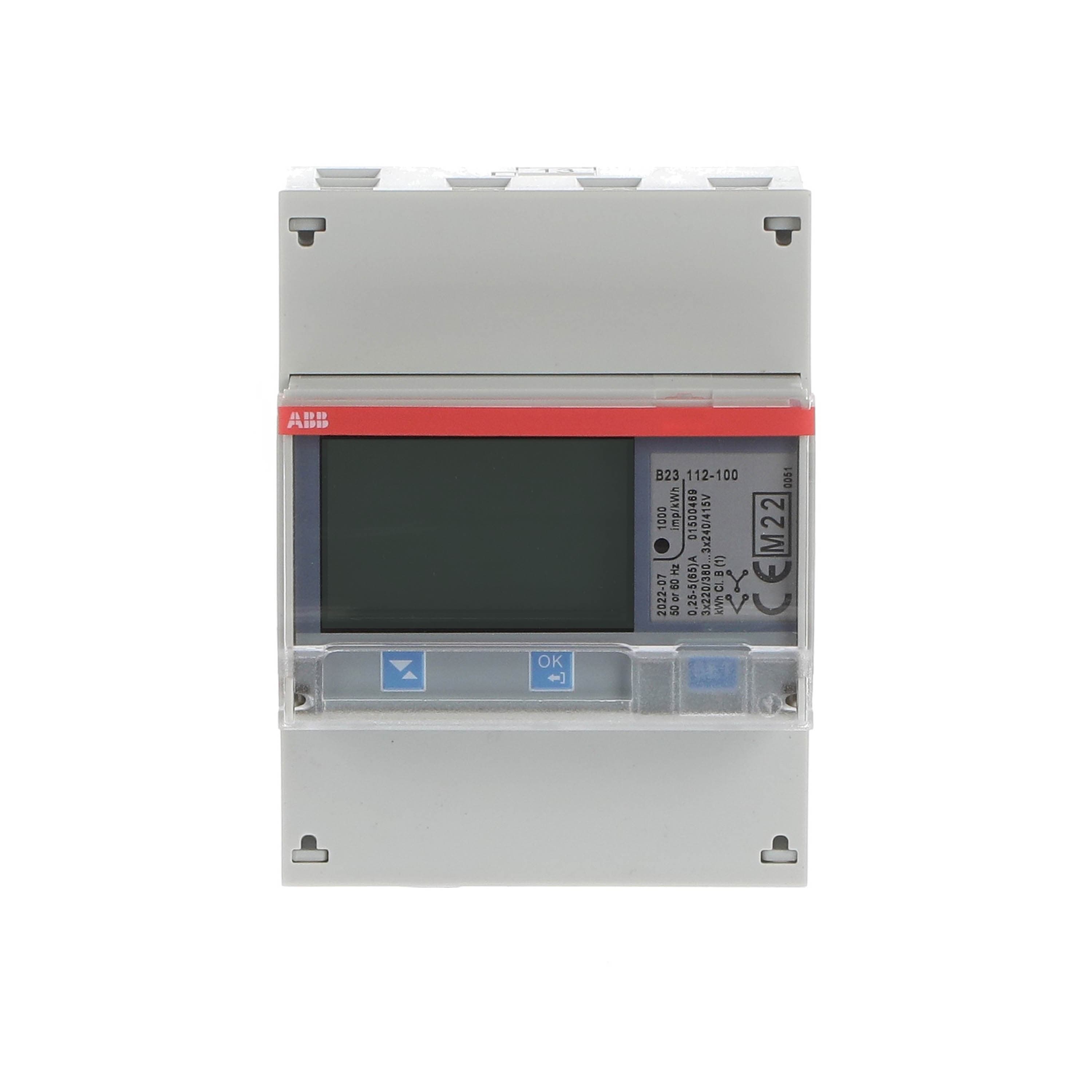

B23 / B24 Energy Meter
Compact three phase DIN rail energy meter with backlit display for billing grade consumption metering.
- Phase: 3 phase
- Measures: kWh import and export, multi tariff
- Comms: Modbus RS485, M-Bus, pulse output
- Mount: DIN rail, MID approved
- Use: sub metering, B23 direct 65 A, B24 via CT

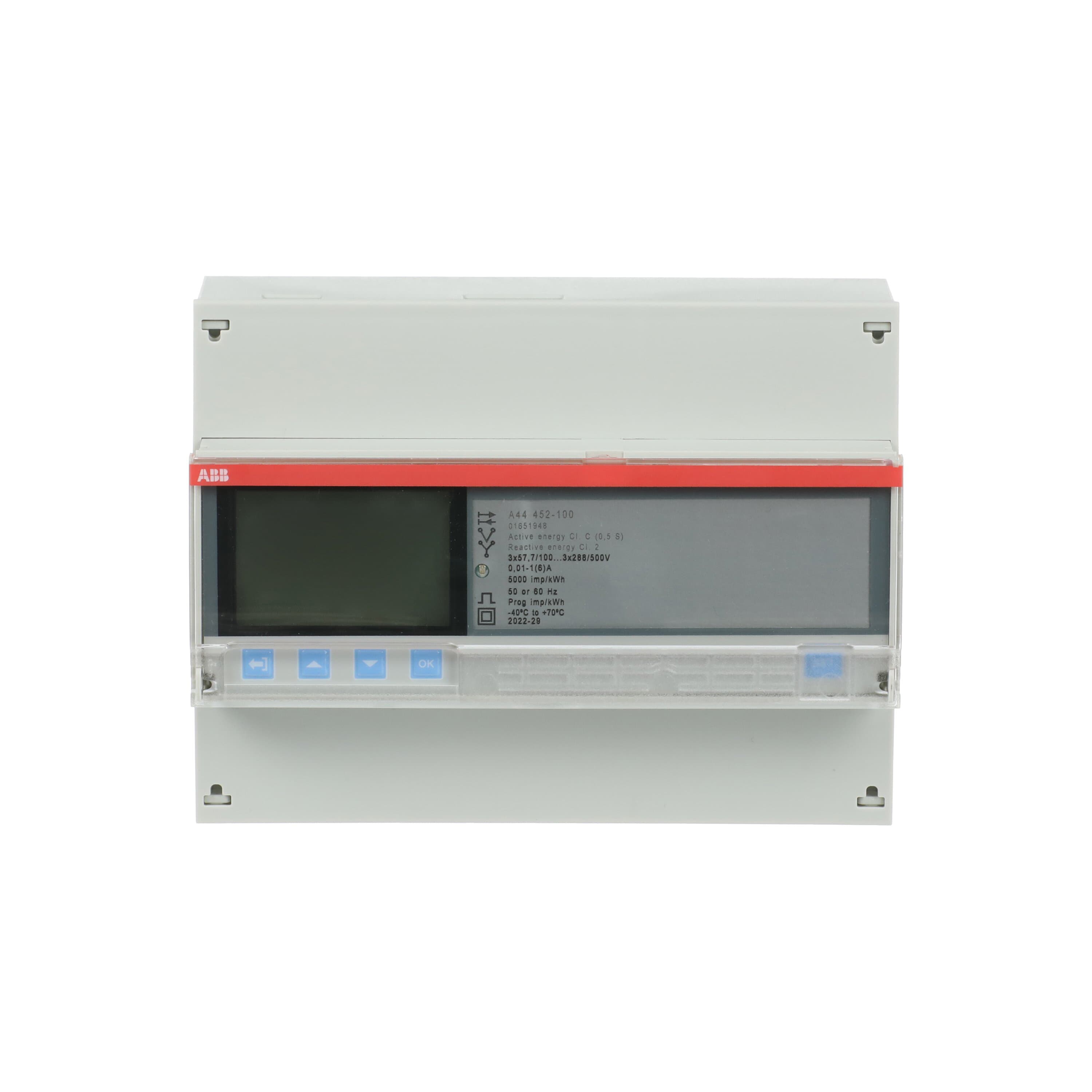

A43 / A44 Energy Meter
Three phase DIN rail meter with instrumentation, alarms and event logging for demanding installations.
- Phase: 3 phase, 3 or 4 wire
- Measures: kWh import and export, multi tariff, min max, THD
- Comms: Modbus RS485, M-Bus, pulse I/O
- Mount: DIN rail, class 0.5S options
- Use: advanced sub metering, A43 direct 80 A, A44 via CT
Need an energy meter?
Our team can match the meter, accuracy class and communication to your monitoring need.
