ABB Contactors
ABB is a global leader in electrification and automation, supplying contactors, circuit breakers, switches, metering and control products for industrial and building installations. SSC Control is an authorised ABB partner, supplying the full range with genuine products, warranty and technical support across Gujarat and India.

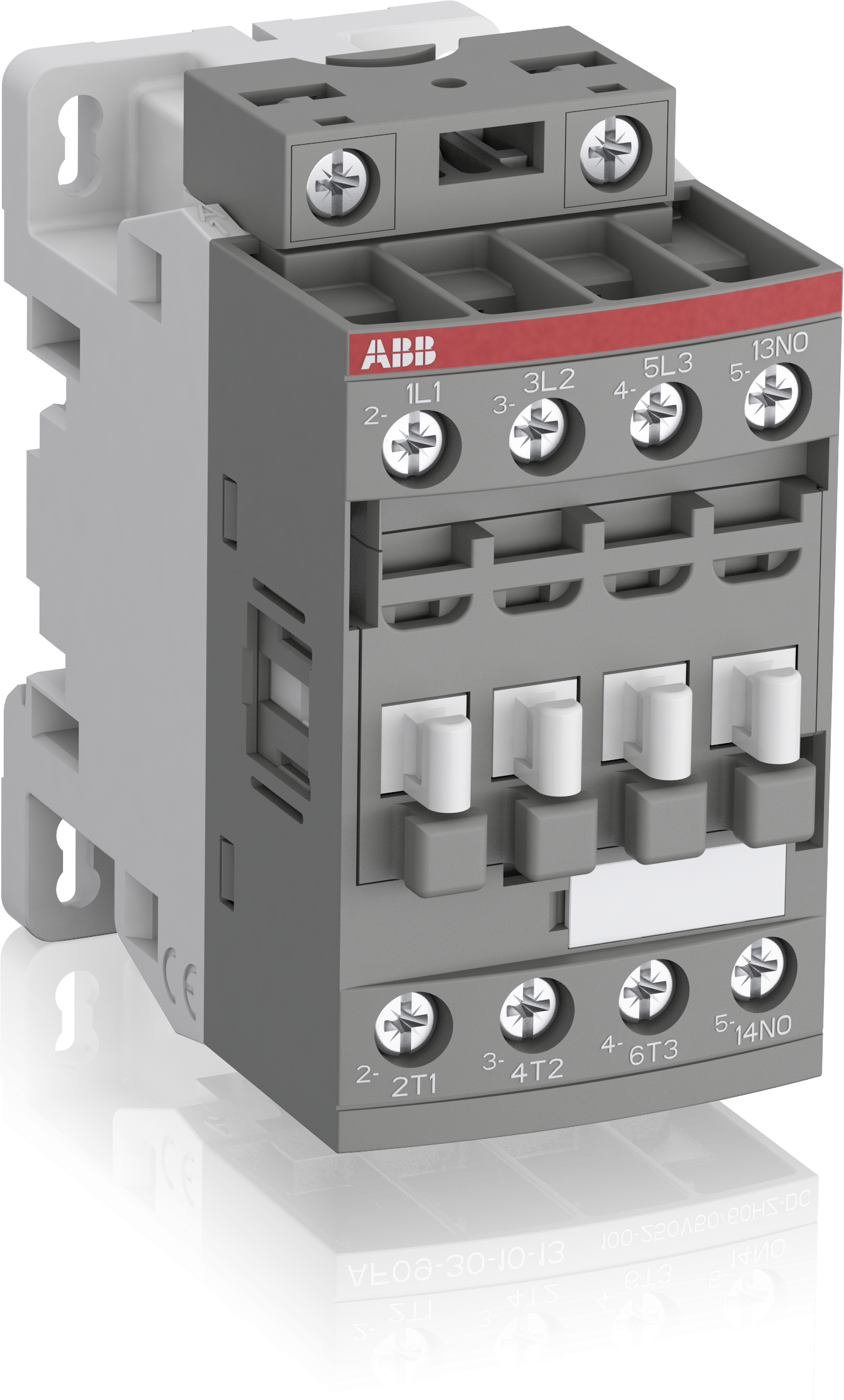

AF09 to AF96 Series
Block contactors with an electronic coil interface that accepts a wide control voltage range, with built in surge suppression for direct motor control.
- Rating: 9 to 96 A AC-3, up to 45 kW at 400V
- Poles: 3 / 4
- Coil: electronic wide band, 24 to 250V AC or DC
- Use: motor starting and power switching
AF116 to AF370 Series
Large frame AF contactors with pre mounted auxiliary contacts and double clamp terminals for high power motor and distribution duty.
- Rating: 116 to 370 A AC-3, up to 200 kW at 400V
- Poles: 3
- Coil: electronic wide band, low holding consumption
- Use: high power motor control and switching
AX Series
Classic AC operated block contactors with conventional coils, a cost effective choice for standard three phase motor and power line control.
- Rating: 9 to 370 A AC-3, 4 to 200 kW
- Poles: 3
- Coil: AC operated, single voltage 24 to 400V AC
- Use: three phase motor and power circuits up to 690V

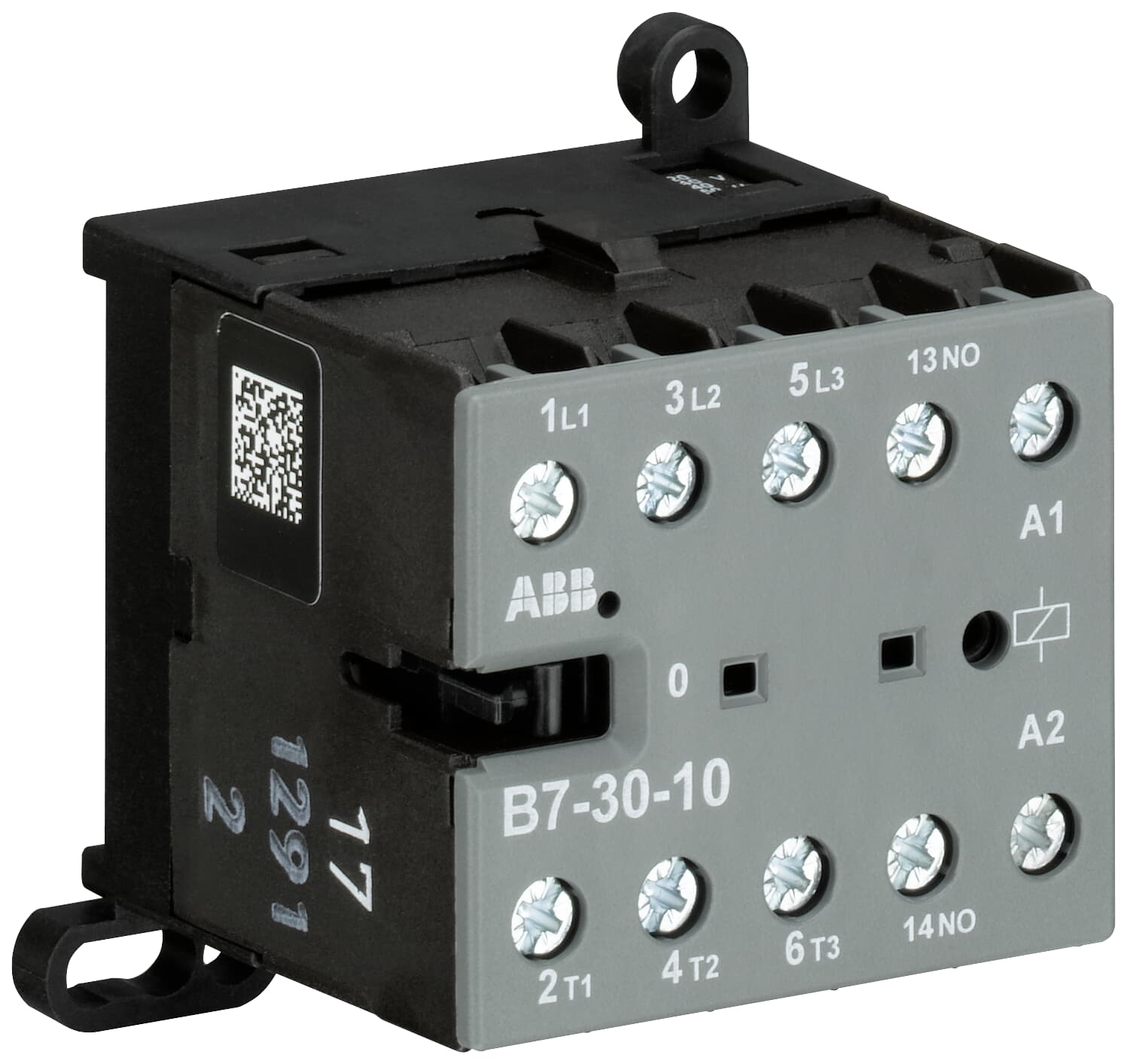

B6 / B7 Mini Contactors
Miniature 3 pole contactors with low coil consumption and one built in auxiliary contact for compact panels.
- Rating: B6 9A, B7 12A AC-3, 4 to 5.5 kW
- Poles: 3
- Coil: AC or DC operated, 12 to 240V
- Use: small motor and resistive load switching

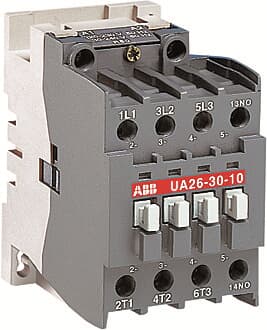

A Series
Classic AC operated block contactors for switching three phase motors and power circuits across a wide rating span.
- Rating: 9 to 300 A AC-3, 4 to 160 kW at 400V
- Poles: 3
- Coil: AC operated
- Use: motor control, DOL and star delta starters up to 690V
AFS Safety Contactors
AF contactors with mirror and mechanically linked auxiliary contacts dedicated to machine safety applications.
- Rating: 9 to 96 A AC-3, 4 to 45 kW at 400V
- Poles: 3
- Coil: electronic, 24 to 250V AC or DC
- Feature: mirror and mechanically linked contacts for safety
- Use: machine safety circuits and monitoring

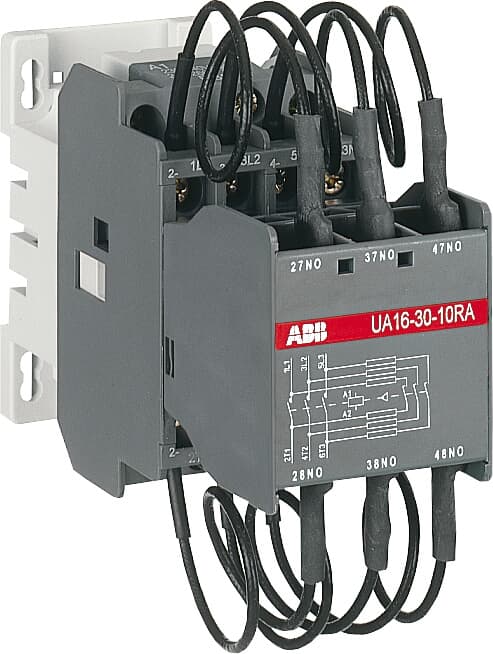

UA / UA-RA Capacitor Contactors
Three pole contactors for switching capacitor banks, with UA-RA versions adding a damping resistor block to limit inrush current.
- Rating: capacitor banks 12.5 to 60 kVAr at 400V, UA16 to UA110
- Poles: 3
- Type: capacitor switching with damping resistors
- Use: power factor correction panels and capacitor bank switching
Need a contactor?
Our team can size the contactor rating and coil for your motor or load.
