ABB Air Circuit Breakers
ABB is a global leader in electrification and automation, supplying contactors, circuit breakers, switches, metering and control products for industrial and building installations. SSC Control is an authorised ABB partner, supplying the full range with genuine products, warranty and technical support across Gujarat and India.

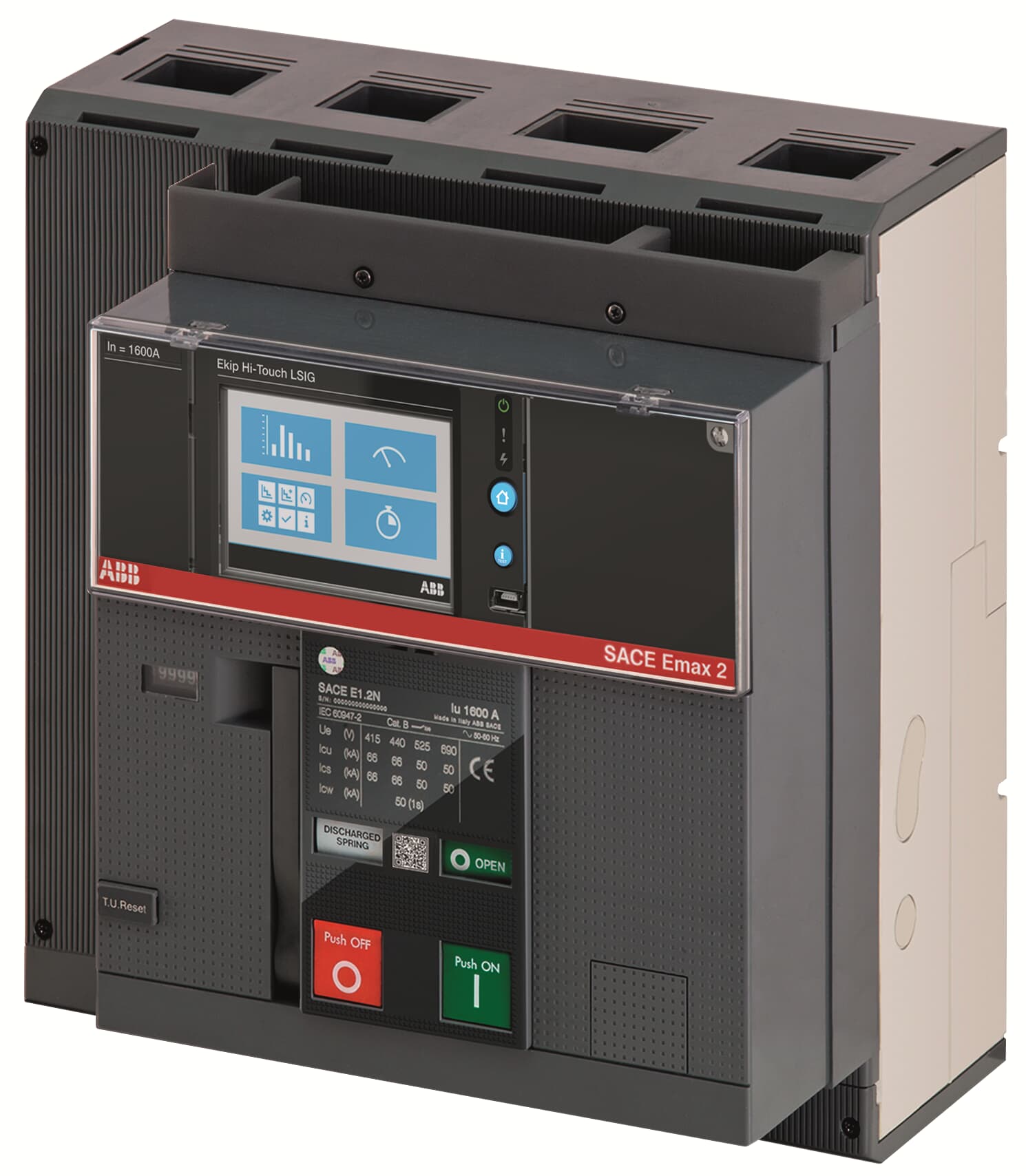

Emax 2 E1.2
The most compact frame in the SACE Emax 2 air circuit breaker range for low voltage power distribution.
- Rating: 630 to 1600 A
- Breaking: up to 66 kA
- Poles: 3 / 4
- Type: fixed / withdrawable
- Trip: Ekip Dip / Touch / Hi-Touch
Emax 2 E2.2
Versatile mid range air circuit breaker delivering high breaking capacity in a space saving frame.
- Rating: 250 to 2500 A
- Breaking: up to 100 kA
- Poles: 3 / 4
- Type: fixed / withdrawable
- Trip: Ekip Dip / Touch / Hi-Touch
Emax 2 E4.2
High performance frame engineered for demanding installations needing strong short circuit withstand.
- Rating: 1600 to 4000 A
- Breaking: up to 100 kA
- Poles: 3 / 4
- Type: fixed / withdrawable
- Trip: Ekip Dip / Touch / Hi-Touch
Emax 2 E6.2
Top of the range air circuit breaker for the highest current and power management applications.
- Rating: 4000 to 6300 A
- Breaking: up to 100 kA
- Poles: 3 / 4
- Type: fixed / withdrawable
- Trip: Ekip Dip / Touch / Hi-Touch

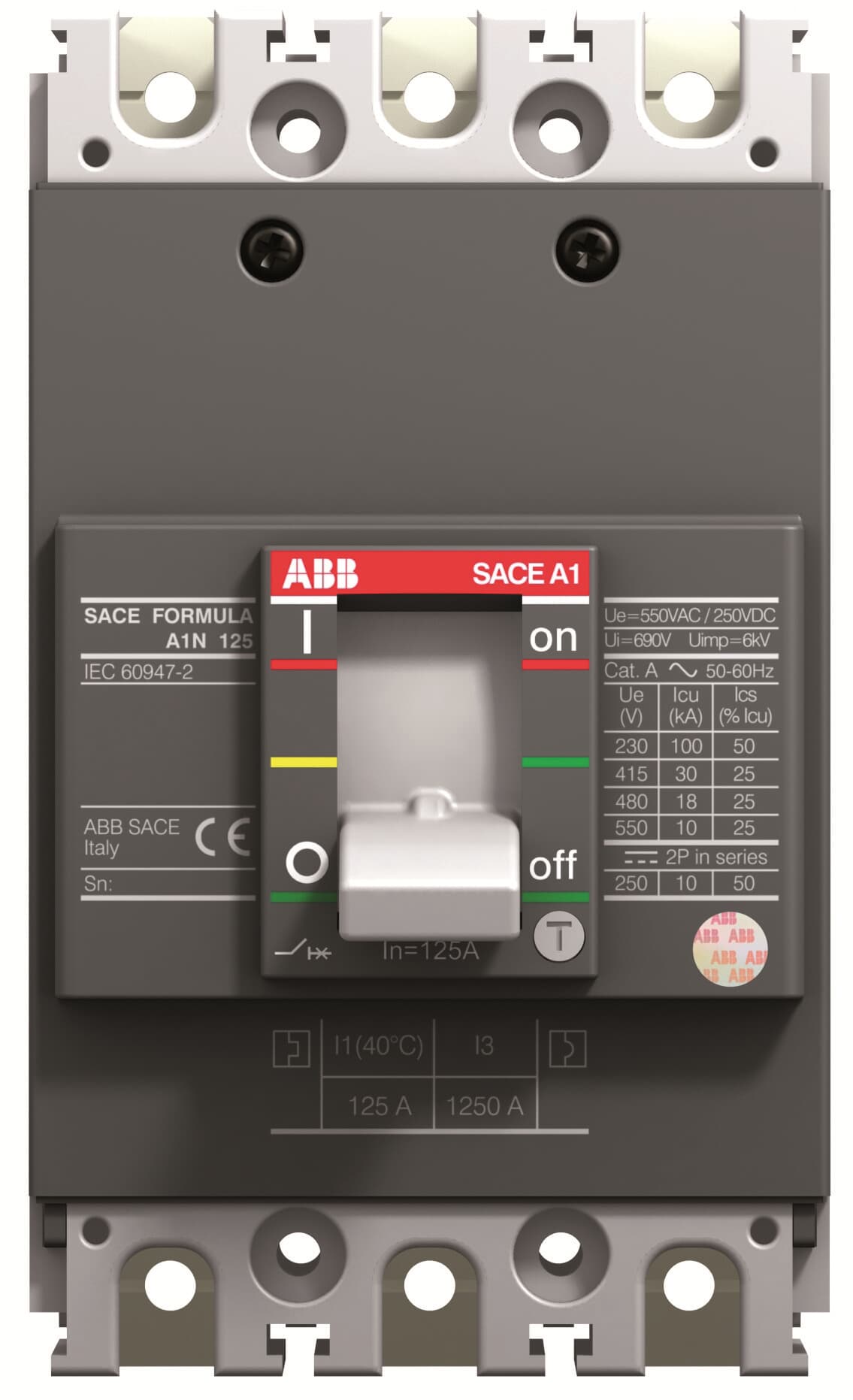

Formula A1 / A2 / A3
ABB SACE Formula compact moulded case air break range with A1, A2 and A3 frames for low voltage circuit protection.
- Frame: A1 125 A, A2 250 A, A3 630 A
- Breaking: 36 to 50 kA at 415V
- Poles: 3 / 4
- Trip: thermomagnetic or electronic
- Use: compact distribution and general circuit protection
Need an ACB?
Our team can size the Emax 2 frame and Ekip trip unit for your switchboard.
